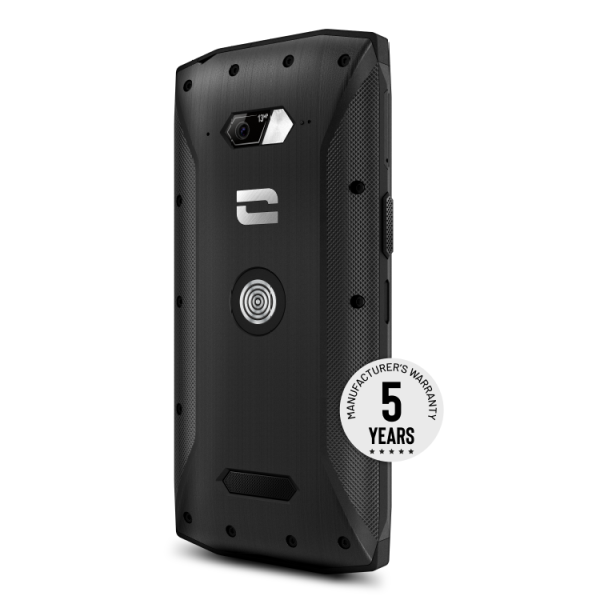

Crosscall CORE-M5

Description

Crosscall CORE-M5

Powerful processor

The Crosscall CORE-M5 is equipped with a Qualcomm SM6115 Octocore processor. The processor analyzes and manages the capabilities of user needs in real time. This ensures smooth and optimal usage.

At the same time, the CORE-M5 delivers better performance than its predecessors and consumes less power. The data processed by the processor is passed to the DDR4 memory module with 4 GB of RAM, before being stored in the 64 GB flash memory.
If needed, this capacity can be expanded with a micro SD card up to 512 GB, not included).

User-friendly and comfortable to handle

The compact 4.95-inch display offers the perfect balance of easy operation and good readability. Also, the CORE-M5 side buttons are designed for easy use, especially when wearing gloves. These two programmable buttons provide quick access to certain functions without having to untrigger the phone. With the Crosscall X-TALK app, the smartphone can also be used as a walkie talkie. Calls from this Crosscall CORE-M5 are clear and audible thanks to the powerful 100dB speaker.

Always connected

The CORE-M5 integrates network bands specifically for the 4G connection (up to 300 Mbps download and 75 Mbps upload). At home or in the office, the CORE-M5 connects to the WiFi network (802.11 a/b/g/n/ac 2.4Ghz and 5Ghz) so that the mobile data plan is saved.

WPA-3 certification

WPA3 certification relates to the security of WiFi devices. This standard provides advanced security protocols and features to increase Wi-Fi network security.

Share connection

The Crosscall CORE-M5 can also be used as a modem. In this way, other devices and people nearby can benefit from fast 4G Internet access.

4G Dual-SIM

Thanks to the dual slot for 4G SIM cards, the CORE-M5 can easily switch SIM cards or opereators. This ensures that the device always has range and maximum 4G coverage. Also, this feature can be used for temporary local subscription while abroad.

Tested to military standard

The CORE-M5 is perfectly protected, thanks to its design with a double injection TPU (Thermoplastic polyurethane) for the surface. This layer runs across the corners of the CORE-M5 and allows the device to absorb shocks more easily. In addition, the CORE-M5 has passed the 15 tests of the military standard MIL-STD-810H with flying colors, including drop tests on all six sides of the phone, from a height of 2 meters on a concrete slab. A GORE membrane, based on GORE Vent technology, protects the microphone during immersion. The membrane is micro-perforated and allows air to pass through, but not liquids.

To maintain full power, the speaker is 100% waterproof and has a grille that protects against dust, microparticles and shocks. The screen of the CORE-M5 also features 0.7 mm thick Corning Gorilla Glass 3, glass that is scratch and impact resistant.



Specifications

• IP rating :IP68 water- and dustproof
• Resistance to salt water: 2 m/30 mins
• Operating temperature: -25°C / +60°C
• Resistance: MIL STD-810G (13 TESTS), Drop Test 6 sides, 2m
• Dimensions: 151 x 74 x 15.5 mm
• Weight: 226.6 g
• Operating system: Android Version 12, Zero Touch and AER
• Handsfree
• 2 programmable keys
• Size 4.95 inches – 18/9
• Type IPS – Corning Gorilla Glass 3
• Battery: 4,000 mAh, 25h48 communication, 13 days standby
• Bluetooth: 5.0
• Dual-SIM



What’s in the Box

• Crosscall CORE-M5
• USB-C cable
• X-blocker
• 5-year manufacturer’s warranty



Supporting Documents

Datasheet
