Description
LOUDSPEAKER PERFORMANCE: Up to 103 dB
POWER SUPPLY: Li-Ion 2200 mAh
CHARGING: Charging cable and docking station with magnetic charging plug: similar concept to Smart-Ex® 01 or Ident-Ex® 01. A docking station without any electronics and a mounting option for the charging plug. Optical charging level indication (multiple LEDs)
PLUG:
3.5 mm 4-pin headset jack with locking mechanism for Smart-Ex® 01 / 201 and Ex-Handy 09 / 209 versions
3.5 mm 4-pin headset jack with locking mechanism for ecom next-generation phones
3.5 mm 4-pin headset jack for standard Android and Windows devices
BUTTONS
PTT button operable with thick gloves
Front-facing multi-function button
Volume up / down
SOS button (optional)
FEATURES
Lone worker ready (optional SOS button)
IOT ready (4 standard Google intents usable and/or optional 4 additional Android intent)
Build in NFC Technology
RUN TIMES**
Use time in % with typical user profiles
Speak / Hear / Standby Noisy areas with sound level above 100 dB Noisy areas with sound level between 84 and 100 dB Noisy areas with sound level up to 84 dB
5 / 5 / 90 -> 47 h -> 60 h -> 78 h
25 / 25 / 50 -> 16 h -> 27 h -> 45 h
50 / 50 / 0 -> 9 h -> 16 h -> 30 h
Highest noise level (8/8)* Very high noise level (4/8)* High noise level (2/8)*
*There are 8 different volume levels possible.
**determined runtimes on the Smart-Ex® 01 based on RSM-Ex 01 software version V 16
STANDBY TIME: Approx. 80 hours after commissioning via the 3.5 mm jack of an Android or Windows device
TEMPERATURE RANGE: Ta = -20 … +55°C
IP RATING:
IP 64 following EN/IEC 60079-0 (ATEX/ IECEx).
IP 65 / 67 following EN/IEC 60529 (industrial standard).
ACCESSORIES:

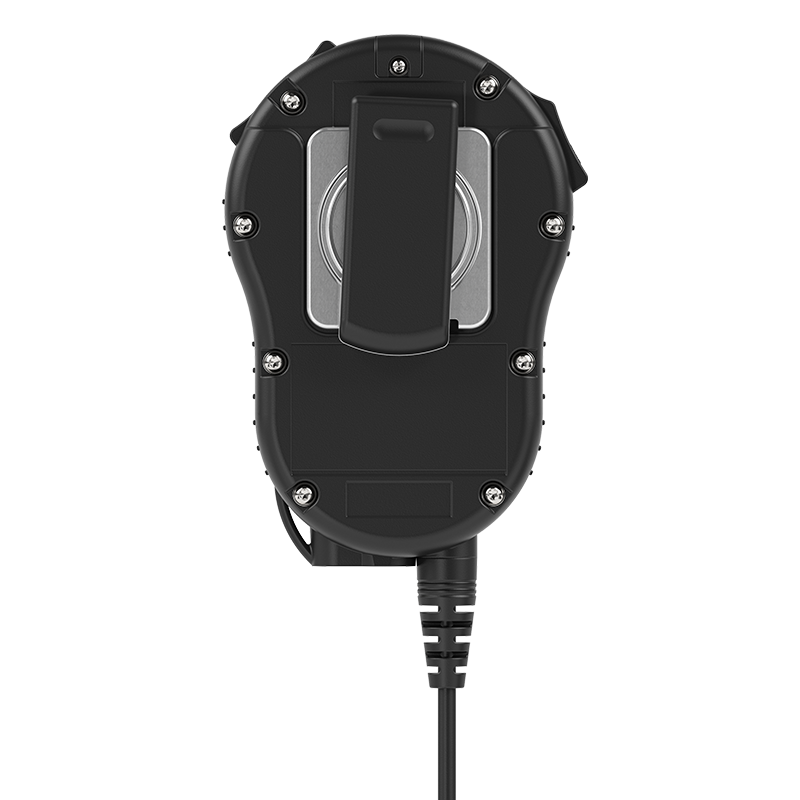

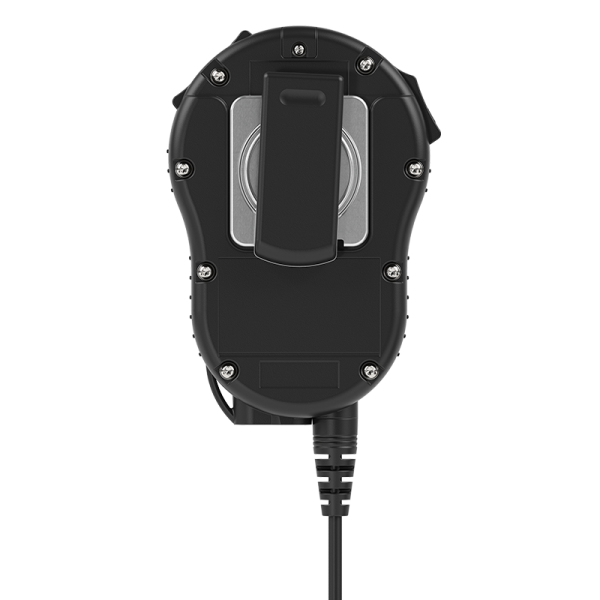

Removable belt clip
Charging cable
Docking station (optional)
Connection of additional headsets (optional)
