Iristick.H1

Description

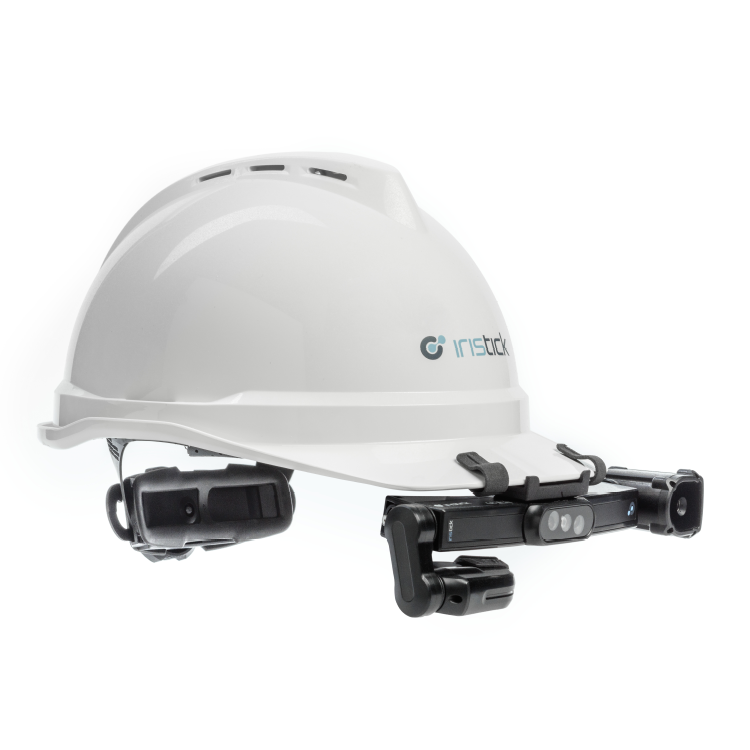

Iristick.H1

Compatible with Android devices

The Iristick.H1 is an industrial smart glasses that can be connected to Android smartphones. This extends the capabilities of the phone through additional displays, cameras, microphones, speakers and barcode scanners.

Iristick’s smart glasses can thus be seen as a smartphone accessory that extends the phone’s functions rather than replacing them. Applications created for the Iristick.H1 smart glasses run on the phone and can use both the phone’s functions and those of the connected H1 smart glasses.

Thanks to Android’s open design, most of the smart glasses’ functions are integrated into the operating system. For example, when the smart glasses are connected, audio is automatically played through the headset’s speaker. The headset’s screen mirrors the phone’s screen. The touchpad on the headset can be used to navigate through the widgets on the screen.

Even when the phone is tucked away in a pocket or bag, the user interface is optimized for the heads-up display. Simple applications can therefore work with the Iristick smart glasses without modification. The use of the SDK allows for further optimization of the user experience on the Iristick smart glasses.

The Iristick.H1 also comes in the variant compatible with Apple. Please contact sales@ruggeddevicesshop.com for more information for the possibilities.

The main advantages of the Iristick.H1:

Dual portrait camera array for extended vertical field view
Touch pad and voice commands for true hands-free operations
Customizable and reversible for best fit and comfort
Heads-up display, share information and receive instructions
6x optical zoom to focus on operation details
Easy to charge from Android smartphones
3-axis adjustable pivot for individual use and wearing comfort
Advanced barcode scanning



Specifications

• Dimensions: 22.3 x 7.8 x 3.3 cm
• Weight: 168 g
• Display: 3-axis adjustable display
• Resolution: 640 x 400 OLED display with active color matrix
• Video: Up to 60 FPS
• Integrated speaker
• Quadruple microphone with echo cancellation
• Multilingual voice commands (ANC up to 90 dB)
• Touchpad
• 6x optical zoom with autofocus
• 2x 16MP central camera with LED
• Barcode scanner Basic and Advanced: QR, EAN-13 and 2D, Aztec, multiple barcodes
• Power 13.3 Wh
• Fully charged in 1.5 hours, hot-swappable
• Cell phone requirements Android 8 or higher, USB Type-C connector
